High Tenacity Polypropylene

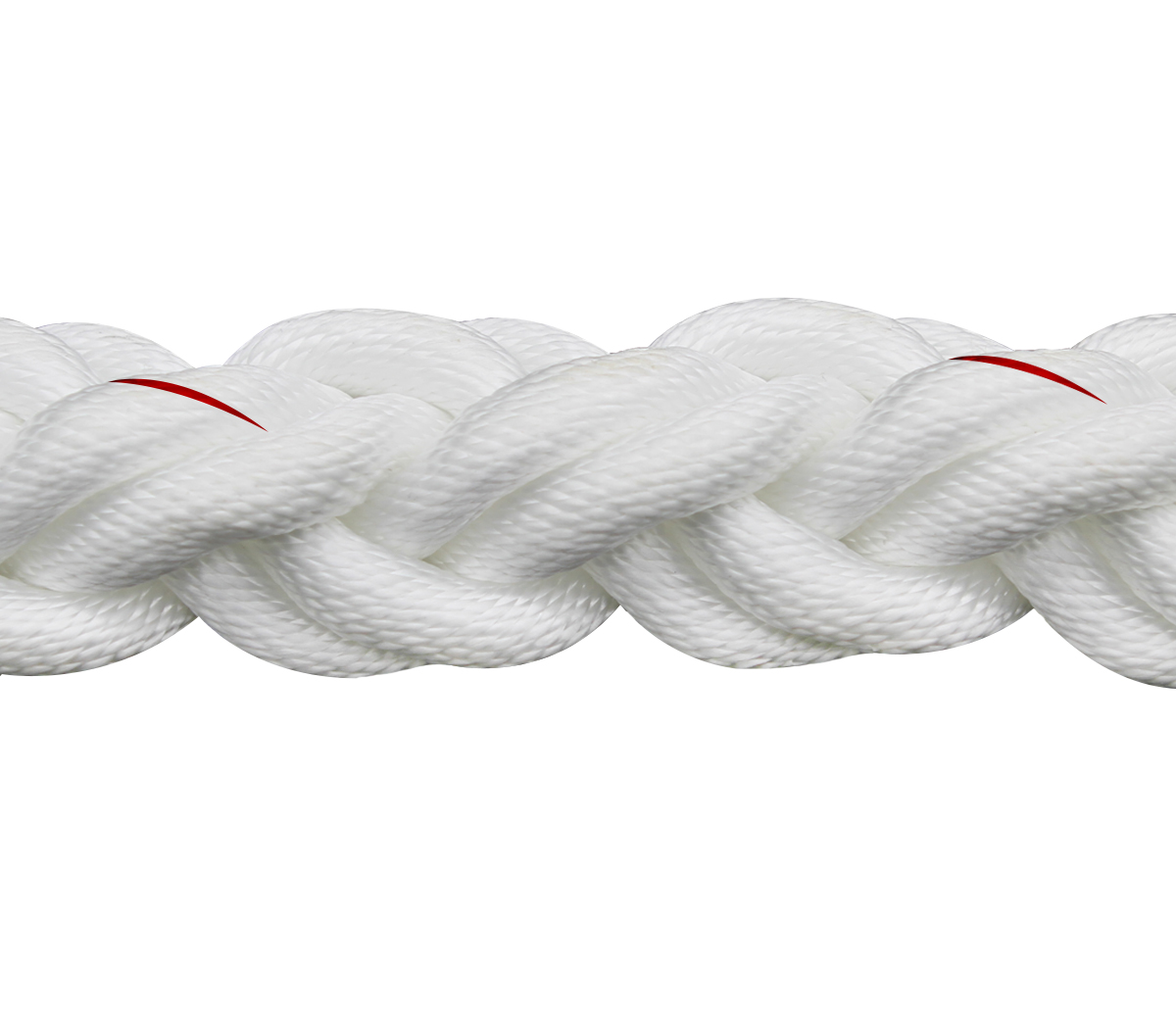

Structure: 8-strand
Features:
Specific Gravity: 0.91~0.93
Melting Point: 165℃
Breaking Elongation: 12%~20%
Abrasion Resistance: Normal
Chemical Resistance: Very Good
UV Resistance: Normal
Water Absorption: 0.01%
Wet-dry Strength Ratio: Dry ≈ Wet
Applications:
Anchor Lines
Dock Lines
Shock Lines
Mooring Lines
Towing Lines
Winch Lines
Light weight mooring line, very easy to handle, keep same strength in wet or dry environment.
| Dia | Circ. | Weight | Code | 8-strand | Code | 12-strand | ||||||||
| Unspliced MBL | LDBF, Spliced MBL | Unspliced MBL | LDBF, Spliced MBL | |||||||||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | ton | kN | ton | kN | ||
| 24 | 1 | 3 | 26.0 | 17.4 | 6105514 | 7.7 | 75 | 6.9 | 68 | 6105614 | 8.2 | 80 | 7.3 | 72 |
| 28 | 1-1/8 | 3-1/2 | 35.4 | 23.7 | 6105516 | 10.2 | 100 | 9.2 | 90 | 6105616 | 10.8 | 106 | 9.7 | 95 |
| 30 | 1-1/4 | 3-3/4 | 40.7 | 27.3 | 6105517 | 11.4 | 112 | 10.3 | 101 | 6105617 | 12.0 | 118 | 10.8 | 106 |
| 32 | 1-5/16 | 4 | 46.3 | 31.1 | 6105518 | 13.5 | 132 | 12.1 | 119 | 6105618 | 14.3 | 140 | 12.9 | 126 |
| 36 | 1-1/2 | 4-1/2 | 58.6 | 39.3 | 6105520 | 16.3 | 160 | 14.7 | 144 | 6105620 | 17.3 | 170 | 15.6 | 153 |
| 40 | 1-5/8 | 5 | 72.3 | 48.5 | 6105522 | 20.4 | 200 | 18.4 | 180 | 6105622 | 21.4 | 210 | 19.3 | 189 |
| 44 | 1-3/4 | 5-1/2 | 87.5 | 58.7 | 6105523 | 24.1 | 236 | 21.6 | 212 | 6105623 | 25.5 | 250 | 23.0 | 225 |
| 48 | 2 | 6 | 104.0 | 69.8 | 6105525 | 28.6 | 280 | 25.7 | 252 | 6105625 | 30.6 | 300 | 27.6 | 270 |
| 52 | 2-1/8 | 6-1/2 | 122.0 | 81.8 | 6105526 | 34.2 | 335 | 30.8 | 302 | 6105626 | 36.2 | 355 | 32.7 | 320 |
| 56 | 2-1/4 | 7 | 142.0 | 95.2 | 6105527 | 38.3 | 375 | 34.5 | 338 | 6105627 | 40.8 | 400 | 36.7 | 360 |
| 60 | 2-1/2 | 7-1/2 | 163.0 | 109.3 | 6105528 | 43.4 | 425 | 39.1 | 383 | 6105628 | 45.9 | 450 | 41.3 | 405 |
| 64 | 2-5/8 | 8 | 185.0 | 124.1 | 6105530 | 48.5 | 475 | 43.7 | 428 | 6105630 | 51.0 | 500 | 45.9 | 450 |
| 72 | 3 | 9 | 234.0 | 157.0 | 6105533 | 61.2 | 600 | 55.1 | 540 | 6105633 | 64.3 | 630 | 57.9 | 567 |
| 80 | 3-1/4 | 10 | 289.0 | 193.8 | 6105536 | 76.5 | 750 | 68.9 | 675 | 6105636 | 81.6 | 800 | 73.5 | 720 |
| 88 | 3-5/8 | 11 | 350.0 | 234.8 | 6105538 | 91.8 | 900 | 82.7 | 810 | 6105638 | 96.9 | 950 | 87.2 | 855 |
| 96 | 4 | 12 | 417.0 | 279.7 | 6105540 | 108.2 | 1060 | 97.3 | 954 | 6105640 | 114.3 | 1120 | 102.9 | 1008 |
| 104 | 4-1/4 | 13 | 489.0 | 328.0 | 6105542 | 127.6 | 1250 | 114.8 | 1125 | 6105642 | 134.7 | 1320 | 121.2 | 1188 |
| 112 | 4-5/8 | 14 | 567.0 | 380.3 | 6105545 | 142.9 | 1400 | 128.6 | 1260 | 6105645 | 153.1 | 1500 | 137.8 | 1350 |
| 120 | 5 | 15 | 651.0 | 436.0 | 6105548 | 163.3 | 1600 | 146.9 | 1440 | 6105648 | 173.5 | 1700 | 156.1 | 1530 |
| 128 | 5-1/4 | 16 | 741.0 | 497.0 | 6105549 | 193.9 | 1900 | 174.5 | 1710 | 6105649 | 204.1 | 2000 | 183.7 | 1800 |
| 136 | 5-5/8 | 17 | 836.0 | 560.7 | 6105551 | 216.3 | 2120 | 194.7 | 1908 | 6105651 | 228.6 | 2240 | 205.7 | 2016 |
| 144 | 6 | 18 | 937.0 | 628.5 | 6105552 | 240.8 | 2360 | 216.7 | 2124 | 6105652 | 255.1 | 2500 | 229.6 | 2250 |
| 160 | 6-5/8 | 20 | 1160.0 | 778.0 | 6105555 | 285.7 | 2800 | 257.1 | 2520 | 6105655 | 306.1 | 3000 | 275.5 | 2700 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
