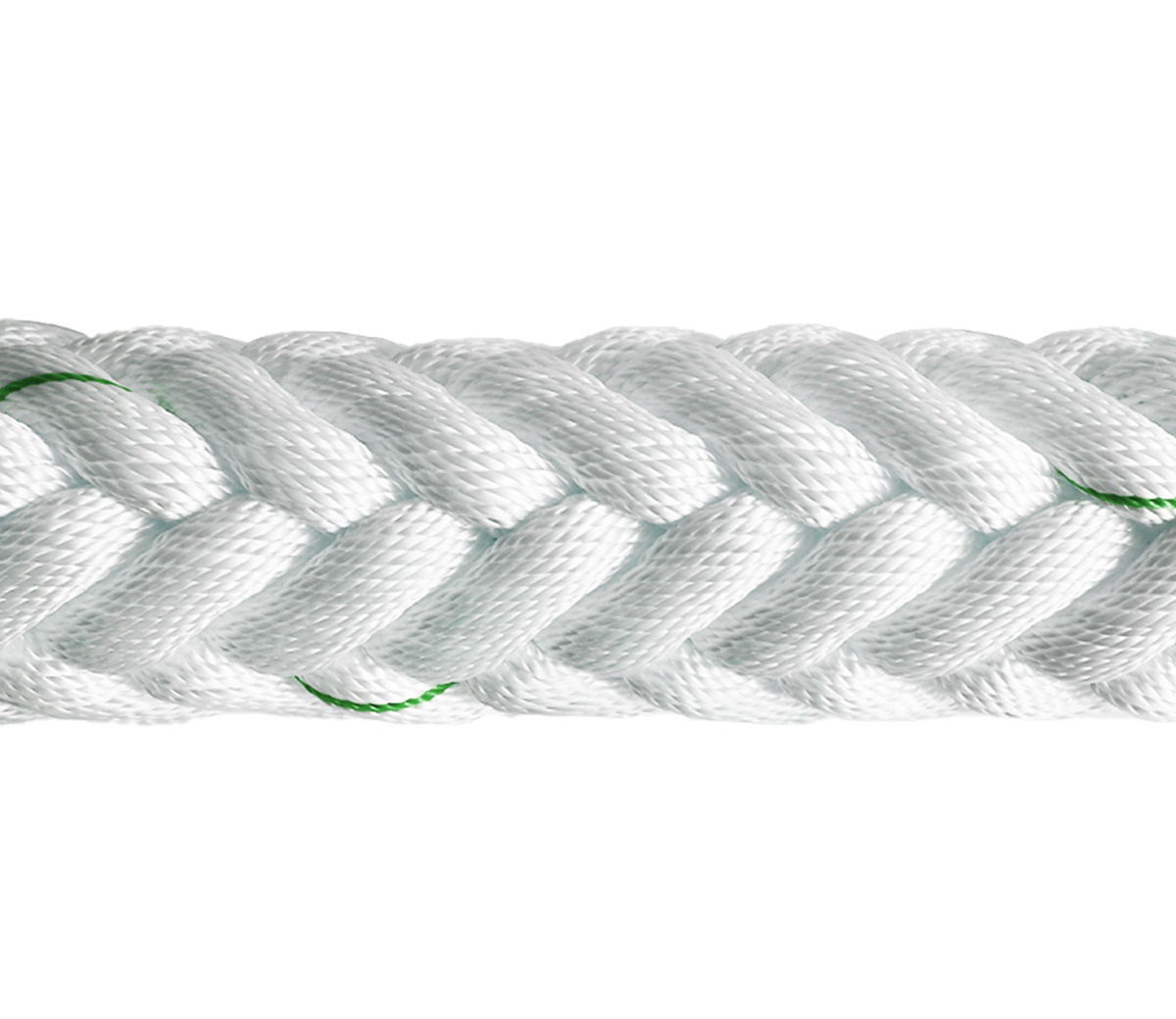

High Tenacity Polyamide
Structure: 12-strand
Features:
Specific Gravity: 1.14
Melting Point: 215℃
Breaking Elongation: 15%~28%
Abrasion Resistance: Very Good
Chemical Resistance: Very Good
UV Resistance: Very Good
Water Absorption: 4%
Wet-dry Strength Ratio: Dry > Wet
Applications:
Anchor Lines
Dock Lines
Shock Lines
Mooring Lines
Towing Lines
Winch Lines
Made of polyamide fiber, the rope has good shock-absorption capacities and widely use in ship towing.
Dia | Circ. | Weight | Code | 8-strand | Code | 12-strand | ||||||||
Unspliced MBL | LDBF, Spliced MBL | Unspliced MBL | LDBF, Spliced MBL | |||||||||||
mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | ton | kN | ton | kN | ||
24 | 1 | 3 | 36.0 | 24.1 | 6103514 | 13.7 | 134 | 12.4 | 121 | 6103614 | 14.4 | 142 | 13.0 | 127 |
28 | 1-1/8 | 3-1/2 | 49.0 | 32.9 | 6103516 | 18.4 | 180 | 16.6 | 162 | 6103616 | 19.6 | 192 | 17.6 | 173 |
30 | 1-1/4 | 3-3/4 | 56.0 | 37.6 | 6103517 | 20.8 | 204 | 18.7 | 184 | 6103617 | 22.1 | 216 | 19.8 | 194 |
32 | 1-5/16 | 4 | 64.0 | 42.9 | 6103518 | 24.5 | 240 | 22.1 | 216 | 6103618 | 25.9 | 254 | 23.4 | 229 |
36 | 1-1/2 | 4-1/2 | 81.0 | 54.3 | 6103520 | 30.6 | 300 | 27.6 | 270 | 6103620 | 32.4 | 318 | 29.3 | 287 |
40 | 1-5/8 | 5 | 100.0 | 67.1 | 6103522 | 36.7 | 360 | 33.1 | 324 | 6103622 | 38.5 | 378 | 34.8 | 341 |
44 | 1-3/4 | 5-1/2 | 121.0 | 81.2 | 6103523 | 43.4 | 426 | 39.2 | 384 | 6103623 | 46.0 | 450 | 41.4 | 406 |
48 | 2 | 6 | 144.0 | 96.6 | 6103525 | 52.1 | 510 | 46.9 | 460 | 6103625 | 55.1 | 540 | 49.6 | 486 |
52 | 2-1/8 | 6-1/2 | 170.0 | 114.0 | 6103526 | 61.2 | 600 | 55.1 | 540 | 6103626 | 64.9 | 636 | 58.4 | 572 |
56 | 2-1/4 | 7 | 197.0 | 132.1 | 6103527 | 68.5 | 672 | 61.7 | 605 | 6103627 | 73.4 | 720 | 66.1 | 648 |
60 | 2-1/2 | 7-1/2 | 226.0 | 151.6 | 6103528 | 77.2 | 756 | 69.5 | 680 | 6103628 | 82.1 | 804 | 73.8 | 724 |
64 | 2-5/8 | 8 | 257.0 | 172.4 | 6103530 | 86.9 | 852 | 78.2 | 767 | 6103630 | 91.8 | 900 | 82.7 | 810 |
72 | 3 | 9 | 325.0 | 218.0 | 6103533 | 110.2 | 1080 | 99.2 | 972 | 6103633 | 116.3 | 1140 | 104.6 | 1026 |
80 | 3-1/4 | 10 | 401.0 | 269.0 | 6103536 | 137.2 | 1344 | 123.5 | 1210 | 6103636 | 144.5 | 1416 | 130.1 | 1274 |
88 | 3-5/8 | 11 | 486.0 | 326.0 | 6103538 | 161.6 | 1584 | 145.4 | 1426 | 6103638 | 171.5 | 1680 | 154.3 | 1512 |
96 | 4 | 12 | 578.0 | 387.7 | 6103540 | 196.0 | 1920 | 176.3 | 1728 | 6103640 | 208.2 | 204 | 187.3 | 1836 |
104 | 4-1/4 | 13 | 678.0 | 454.8 | 6103542 | 220.4 | 2160 | 198.4 | 1944 | 6103642 | 232.7 | 2280 | 209.4 | 2052 |
112 | 4-5/8 | 14 | 787.0 | 527.9 | 6103545 | 259.6 | 2544 | 233.6 | 2290 | 6103645 | 274.3 | 2688 | 246.8 | 2419 |
120 | 5 | 15 | 903.0 | 605.7 | 6103548 | 289.0 | 2832 | 260.0 | 2549 | 6103648 | 306.1 | 3000 | 275.5 | 2700 |
128 | 5-1/4 | 16 | 1010.0 | 677.4 | 6103549 | 324.5 | 3180 | 292.1 | 2862 | 6103649 | 342.8 | 3360 | 308.5 | 3024 |
136 | 5-5/8 | 17 | 1160.0 | 778.0 | 6103551 | 367.3 | 3600 | 330.6 | 3240 | 6103651 | 385.7 | 3780 | 347.2 | 3402 |
144 | 6 | 18 | 1300.0 | 872.0 | 6103552 | 410.2 | 4020 | 369.2 | 3618 | 6103652 | 434.6 | 4260 | 391.2 | 3834 |
160 | 6-5/8 | 20 | 1610.0 | 1079.9 | 6103555 | 520.4 | 5100 | 468.4 | 4590 | 6103655 | 551.0 | 5400 | 496.0 | 4860 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
