High Tenacity Polyamide
Structure: 6-strand
Features:
Specific Gravity: 1.14
Melting Point: 215℃
Breaking Elongation: 15%~28%
Abrasion Resistance: Very Good
Chemical Resistance: Very Good
UV Resistance: Very Good
Water Absorption: 4%
Wet-dry Strength Ratio: Dry > Wet
Applications:
Mooring Lines
Winch Lines

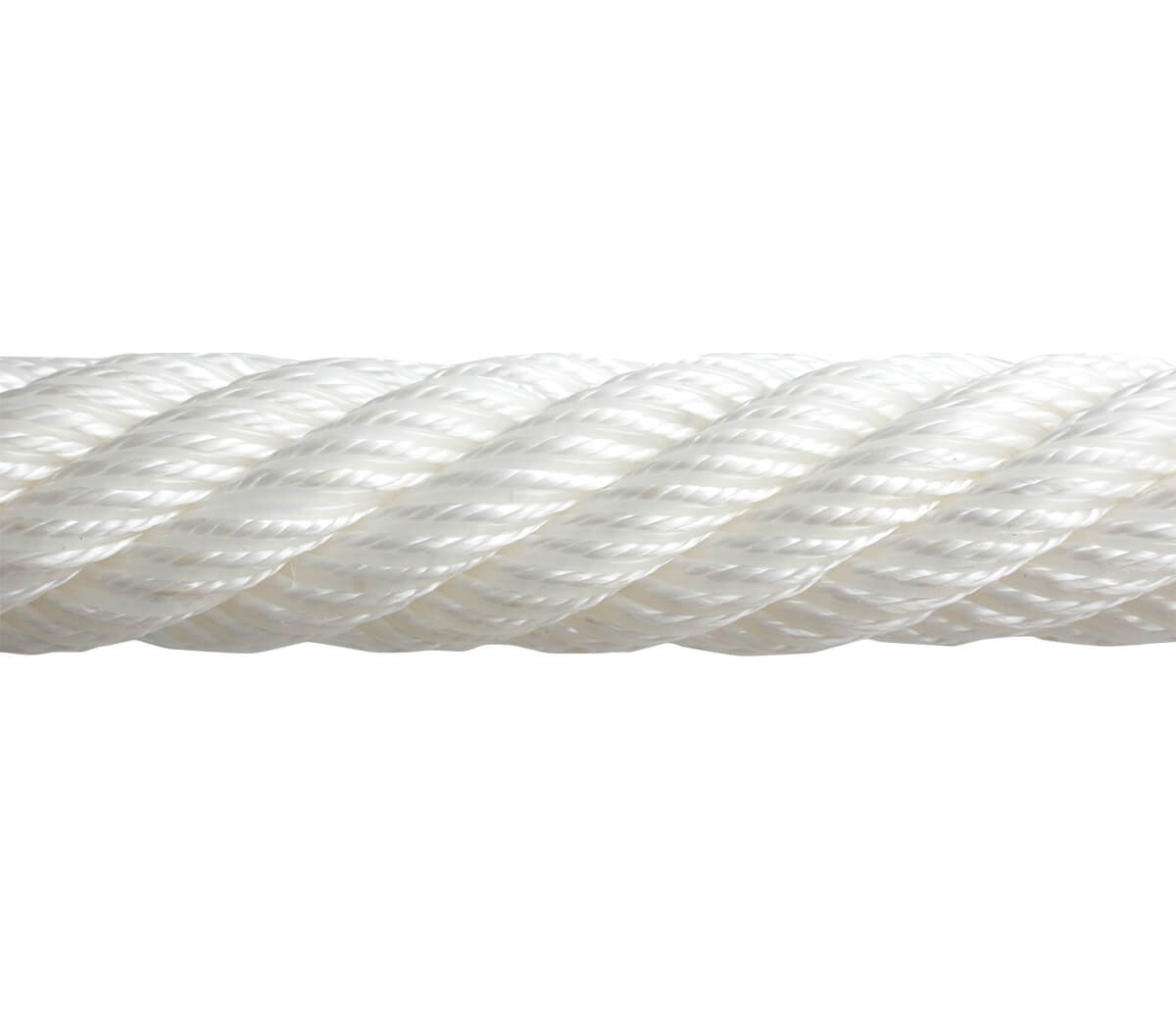

6- strand construction keeps rope round, polyamide monofilament combined with polyamide multifilament ensure the rope have excellent abrasion resistance and UV resistance. Round and stiff construction makes rope easy to go through on winch, compared with steel rope, it's much lighter and easier to handle, a good replacement of steel rope.
| Code | Dia | Circ. | Weight | Unspliced MBL | LDBF, Spliced MBL | ||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | |
| 6103422 | 40 | 1-5/8 | 5 | 105.0 | 70.5 | 34.0 | 333 | 30.6 | 300 |
| 6103423 | 44 | 1-3/4 | 5-1/2 | 124.0 | 83.2 | 43.7 | 428 | 39.3 | 385 |
| 6103425 | 48 | 2 | 6 | 148.0 | 99.4 | 51.7 | 507 | 46.5 | 456 |
| 6103426 | 52 | 2-1/8 | 6-1/2 | 163.0 | 109.4 | 56.7 | 556 | 51.0 | 500 |
| 6103427 | 56 | 2-1/4 | 7 | 200.0 | 134.3 | 68.3 | 669 | 61.5 | 602 |
| 6103428 | 60 | 2-1/2 | 7-1/2 | 217.0 | 145.7 | 73.3 | 718 | 66.0 | 647 |
| 6103430 | 64 | 2-5/8 | 8 | 246.0 | 165.2 | 84.0 | 823 | 75.6 | 741 |
| 6103431 | 68 | 2-3/4 | 8-1/2 | 281.0 | 188.7 | 96.8 | 949 | 87.1 | 854 |
| 6103433 | 72 | 3 | 9 | 328.0 | 220.2 | 110.4 | 1082 | 99.4 | 974 |
| 6103435 | 78 | 3-1/13 | 9-3/4 | 370.0 | 248.4 | 122.5 | 1201 | 110.3 | 1080 |
| 6103437 | 84 | 3-1/2 | 10-1/2 | 427.0 | 286.7 | 143.0 | 1401 | 128.7 | 1261 |
| 6103439 | 90 | 3-9/16 | 11-1/4 | 506.0 | 339.7 | 168.1 | 1647 | 151.3 | 1483 |
| 6103440 | 96 | 4 | 12 | 587.0 | 394.1 | 194.0 | 1901 | 174.6 | 1711 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
