LABACUS Multi-Layer Rope (HMPE Core)

Construction:

Multi-Layer


Features:

Excellent abrasion resistance

Excellent chemical resistance

Excellent UV resistance

Excellent Tension fatigue

Bespoke diameter and length is available


Applications: Station keeping

Enquire

product enquiry

call us:+86-538-8669566
Submit
  • Description
  • Specifications
  • Downloads

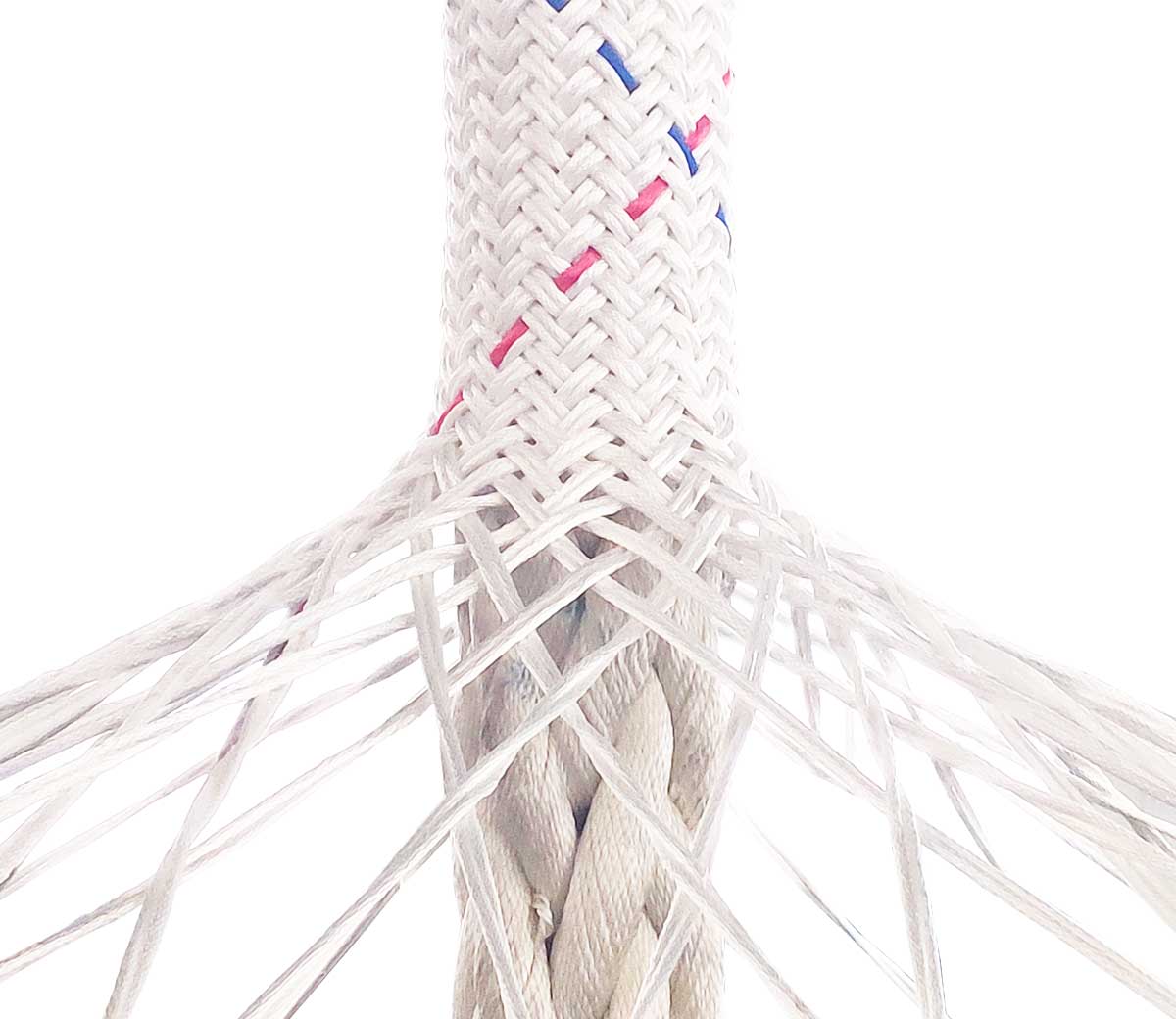

This special rope mainly used for offshore industry like platform station-keeping,the rope usually produced with multi-layer technology,including external jacket,filtration and inner core.The rope design and produce must be based on specific working condition.

Item Number

Size (mm)

Size(inch)

Circ.(inch)

Breaking Load (kg)

Breaking Load(lb)

6411322

63

2-1/2

7-3/4

255000

561000

6411352

71

2-3/4

8-3/4

326000

719000

6411392

80

3-1/8

9-7/8

408000

899000

6411432

90

3-1/2

11-1/8

510000

1123000

6411462

100

4

12-3/8

642000

1415000

6411482

106

4-1/4

13-1/8

724000

1595000

6411502

118

4-5/8

14-1/2

918000

2022000

6411532

132

5-1/4

16-3/8

1142000

2517000

6411562

150

5-7/8

18-1/2

1428000

3146000

6411582

160

6-1/4

19-7/8

1632000

3596000

6411602

170

6-3/4

21

1836000

4045000

6411622

180

7-1/8

22-3/8

2040000

4495000

6411632

190

7-1/2

23-1/2

2244000

4944000

6411642

200

7-7/8

24-3/4

2450000

5394000

6411652

212

8-3/8

26-1/4

2750000

6068000

6411662

224

8-7/8

27-3/4

3060000

6742000

6411672

236

9-3/8

29-1/4

3367000

7417000

6411682

250

10

31

3877000

8540000

6411692

265

10-1/2

32-3/4

4285000

9440000

6411702

280

11

34-5/8

4796000

10563000
