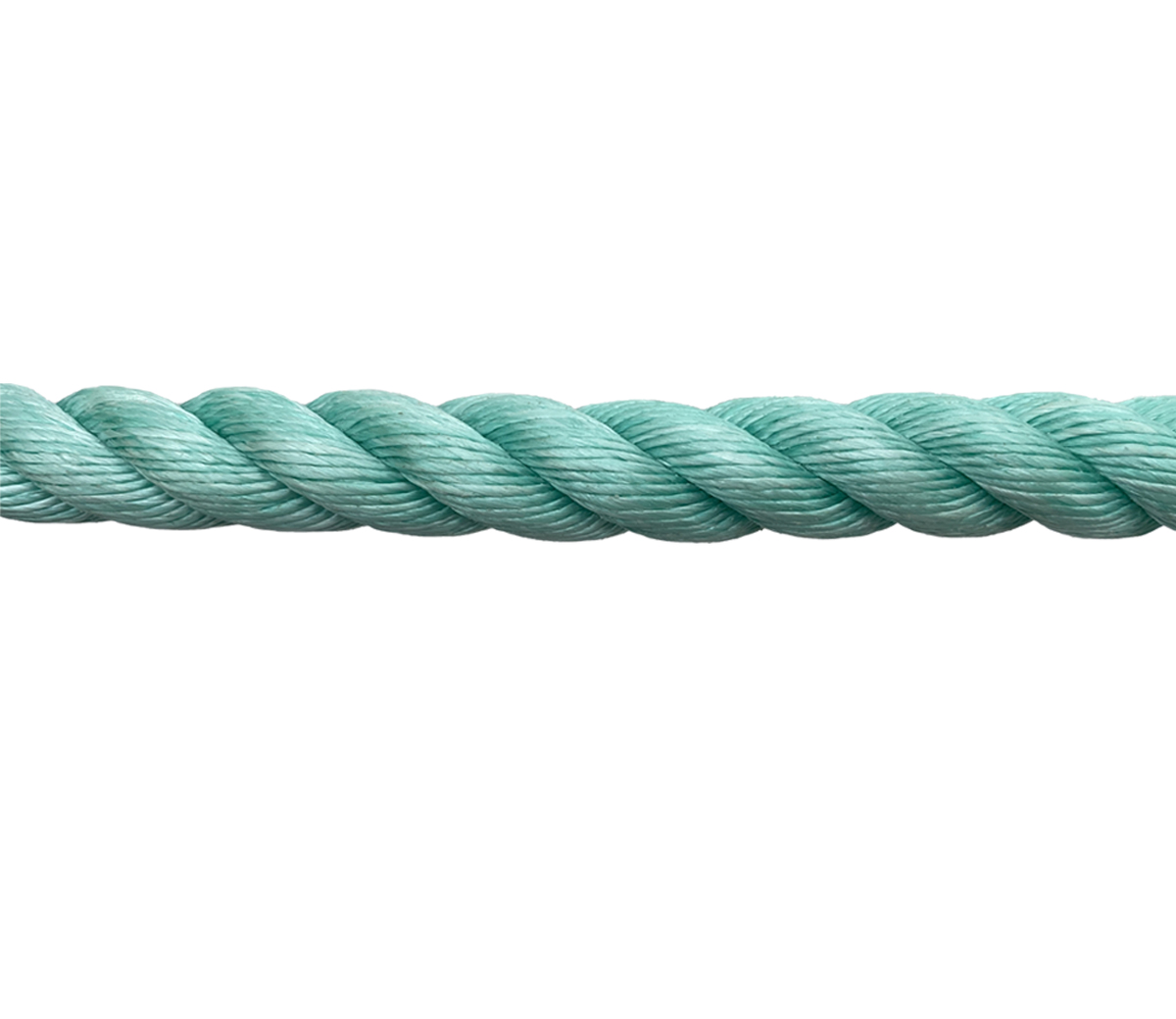

High Tenacity Polyolefin
Structure: 3-Strand
Features:
Specific Gravity:0.96g/cm³
Melting Point:165℃
Breaking Elongation:12%-20%
Abrasion Resistance:Very Good
Chemical Resistance:Very Good
UV Resistance:Good
Water Absorption:0%
Wet-dry Strength Ratio:100%
Applications:
Folating Tow Line
Mooring Line
Tie-up Line
Fishing Line
Made of high tenacity polyolefin fiber, which is the stronger rope among PP, PE and Polyolefin ropes.Excellent breaking strength and remarkable abrasion resistance.
| Dia. | Circ. | Weight | Unspliced MBL | Spliced MBL | ||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN |
| 12 | 1/2 | 1-1/2 | 7.1 | 4.8 | 2.6 | 25 | 2.2 | 22 |
| 14 | 9/16 | 1-3/4 | 9.1 | 6.1 | 3.1 | 30 | 2.8 | 27 |
| 16 | 5/8 | 2 | 11.2 | 7.5 | 3.8 | 37 | 3.4 | 33 |
| 18 | 3/4 | 2-1/4 | 16.1 | 10.8 | 5.1 | 50 | 4.6 | 45 |
| 22 | 7/8 | 2-3/4 | 22.0 | 14.8 | 7.1 | 70 | 6.4 | 63 |
| 24 | 1 | 3 | 27.8 | 18.6 | 8.7 | 85 | 7.8 | 76 |
| 26 | 1-1/16 | 3-1/4 | 31.5 | 21.1 | 9.7 | 95 | 8.7 | 85 |
| 28 | 1-1/8 | 3-1/2 | 35.3 | 23.7 | 10.8 | 106 | 9.7 | 95 |
| 30 | 1-1/4 | 3-3/4 | 42.7 | 28.6 | 13.1 | 128 | 11.7 | 115 |
| 32 | 1-5/16 | 4 | 47.0 | 31.5 | 14.3 | 140 | 12.9 | 126 |
| 36 | 1-1/2 | 4-1/2 | 61.0 | 40.9 | 18.4 | 180 | 16.5 | 162 |
| 40 | 1-5/8 | 5 | 71.1 | 47.7 | 21.5 | 211 | 19.4 | 190 |
| 44 | 1-3/4 | 5-1/2 | 82.0 | 55.0 | 24.9 | 244 | 22.4 | 220 |
| 48 | 2 | 6 | 106.9 | 71.7 | 31.5 | 309 | 28.4 | 278 |
| 52 | 2-1/8 | 6-1/2 | 120.7 | 81.0 | 35.5 | 348 | 31.9 | 313 |
| 56 | 2-1/4 | 7 | 136.2 | 91.4 | 40.1 | 393 | 36.0 | 353 |
| 60 | 2-1/2 | 7-1/2 | 165.2 | 110.8 | 48.5 | 475 | 43.7 | 428 |
| 64 | 2-5/8 | 8 | 186.0 | 124.8 | 54.5 | 534 | 49.0 | 480 |
| 68 | 2-3/4 | 8-1/2 | 218.8 | 146.8 | 63.9 | 626 | 57.4 | 563 |
| 72 | 3 | 9 | 236.6 | 158.7 | 69.4 | 680 | 62.4 | 612 |
| 80 | 3-1/4 | 10 | 287.2 | 192.6 | 81.9 | 803 | 73.8 | 723 |
| 88 | 3-5/8 | 11 | 385.0 | 258.2 | 104.4 | 1023 | 94.0 | 921 |
| 96 | 4 | 12 | 460.0 | 308.5 | 112.2 | 1100 | 101.0 | 990 |
| 100 | 4-1/8 | 12-1/2 | 500.0 | 335.4 | 123.5 | 1210 | 111.1 | 1089 |
Size
TOUGH-HS 3
123.56KB
Made of high tenacity polyolefin fiber, which is the stronger rope among PP, PE and Polyolefin ropes. Excellent breaking strength and remarkable abrasion resistance.
This rope works well in a variety of marine applications requiring durable, rot-proof lines that sink. It can offer good strength and resistance to abrasion and UV light. We can provide leaded ground line in both coils and reels.
