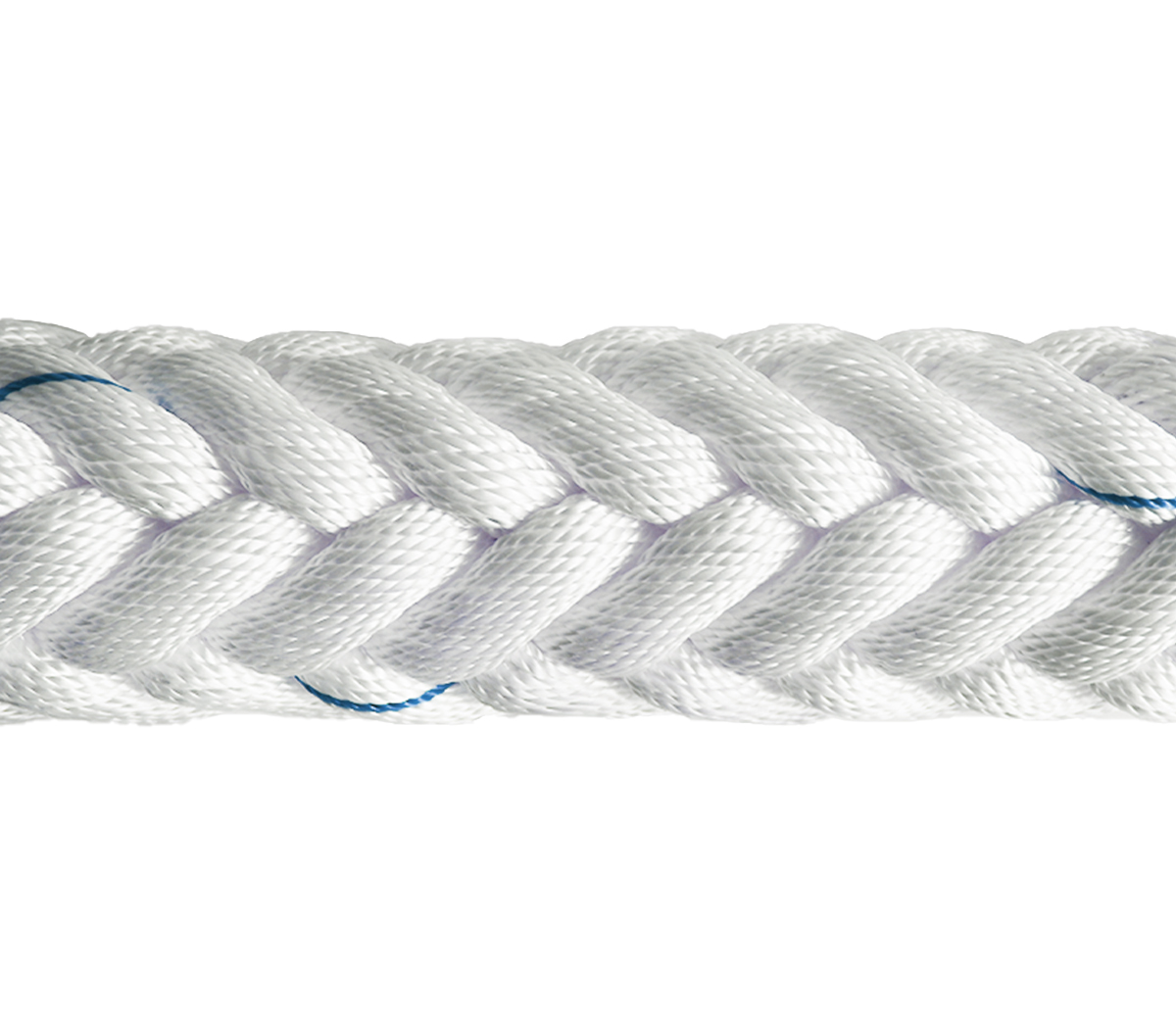

Polyester 12 Strands Mooring Rope

Material properties:

Melting point : 265℃

Specific gravity : 1.38

Elongation at breaking :15~25%


Features:

UV resistance

Easy splicing

Good abrasion resistance

Bespoke diameter and length is available


Applications:Mooring line. H-Bitt working line. Lifting sling. Shock line

Enquire

product enquiry

call us:+86-538-8669566
Submit
  • Description
  • Specifications
  • Downloads

High-tenacity polyester fiber makes rope have very good break strength and finest durability,it's wide use in mooring industry.

Item   Number

Size(mm)

Size(inch)

Circ.(inch)

Weight(kgs/100m)

Weight(lb/100ft)

Break Load(kgs)

Break Load(lbs)

6145111

18

3/4

2-1/4

29

19.47

7500

16500

6145131

22

7/8

2-3/4

41

27.53

11000

24200

6145141

24

1

3

52

34.91

13000

28600

6145161

28

1-1/8

3-1/2

61

40.95

16800

37000

6145171

30

1-1/4

3-3/4

67

44.98

17500

38500

6145181

32

1-5/16

4

79

53.04

22600

49800

6145201

36

1-1/2

4-1/2

106

71.16

28000

61600

6145221

40

1-5/8

5

121

81.24

33000

72700

6145241

44

1-3/4

5-1/2

148

99.36

38000

83700

6145261

48

2

6

177

118.83

47500

104600

6145281

52

2-1/8

6-1/2

208

139.64

54000

119000

6145291

56

2-1/4

7

238

159.79

62000

136600

6145301

60

2-1/2

7-1/2

278

186.64

73000

160800

6145331

64

2-5/8

8

309

207.45

81000

178400

6145341

68

2-3/4

8-1/2

350

234.98

91000

200400

6145361

72

3

9

403

270.56

103000

227000

6145391

80

3-1/4

10

498

334.34

127000

279700

6145421

88

3-5/8

11

595

399.46

156000

343600

6145451

96

4

12

706

473.98

182000

400900

6145471

104

4-1/4

13

826

554.55

214000

471000

6145491

112

4-5/8

14

960

644.51

245000

539600

6145511

120

5

15

1128

757.30

281000

619000



SHOW MORE
