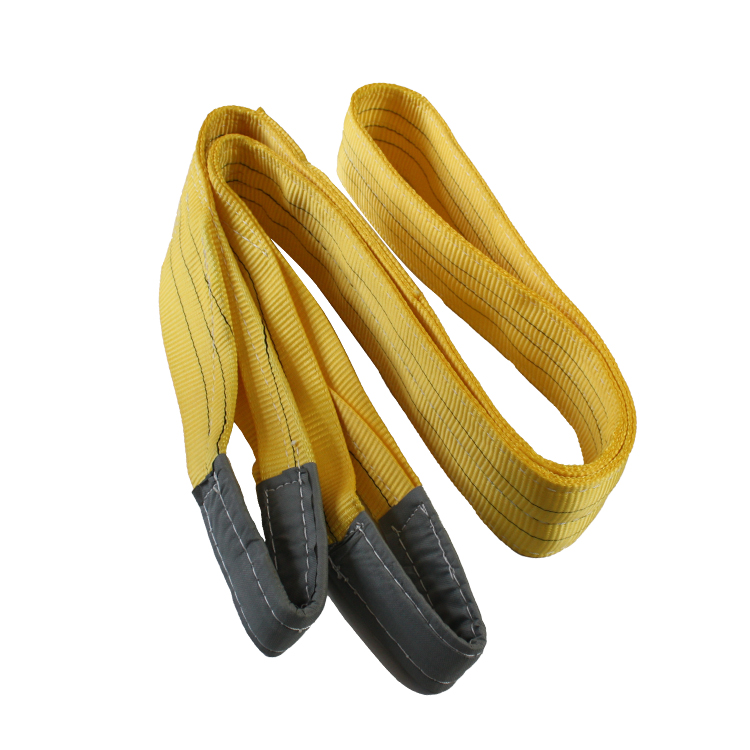

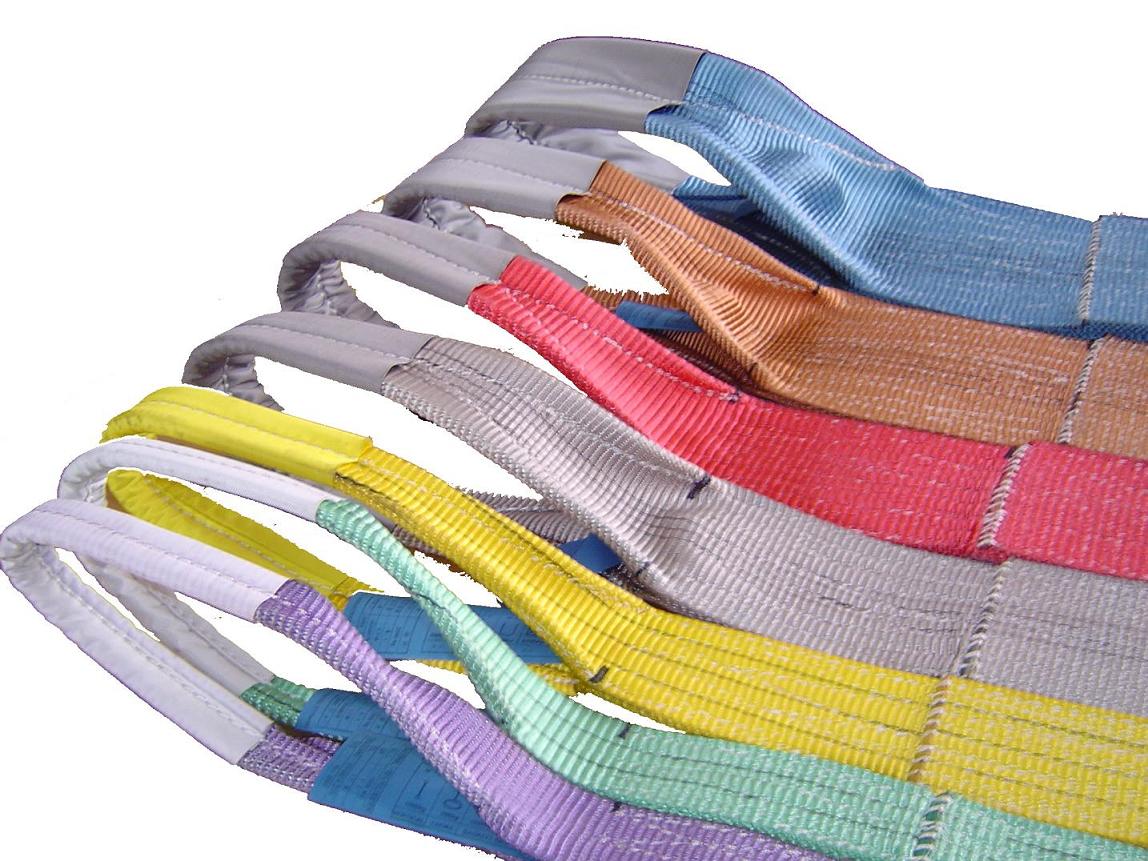

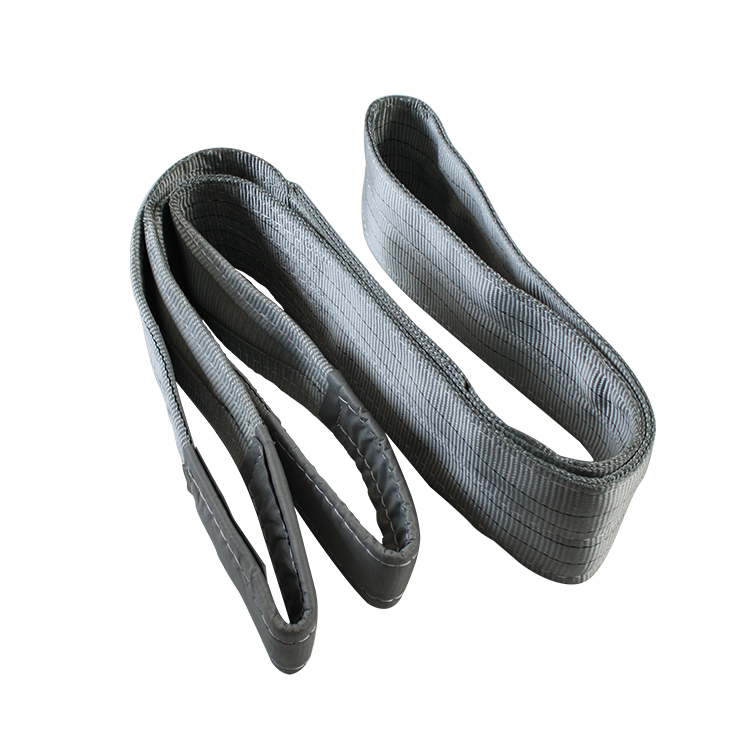

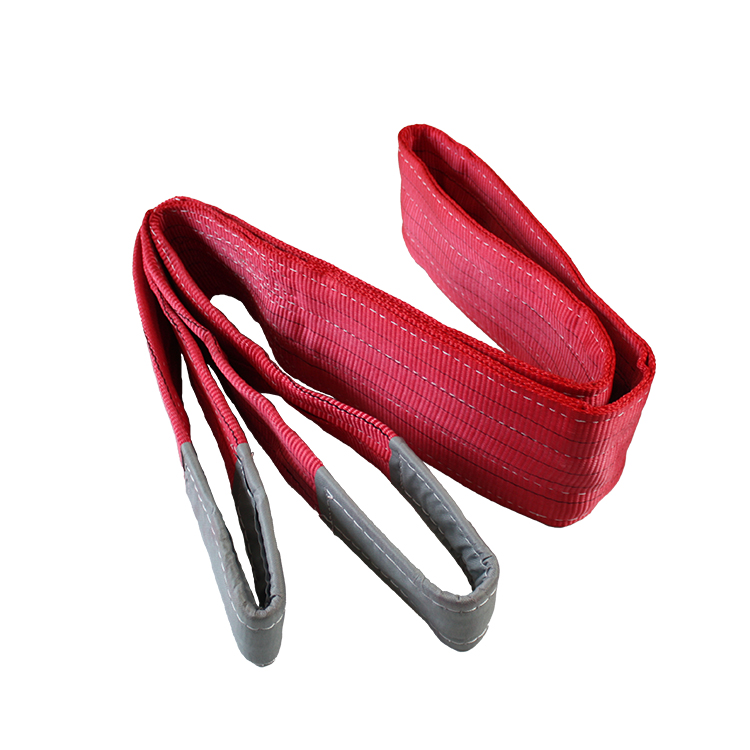

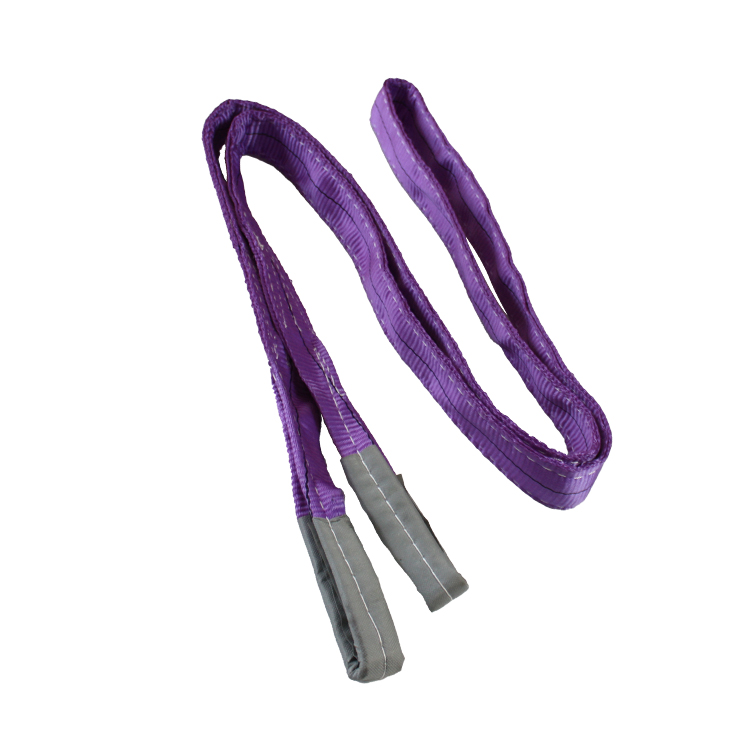

EYE & EYE WEBBING SLING

Construction:

Single layer

Double layers

4 layers


Safety Factor:

5:1, 7:1, 8:1


Features/Benefits:

Lightweight, durable, strong

Flexible, easy to handle

Adjusts to load contours

Holds with a secure grip

Will not damage most load surfaces

Minimizes load shock and jarring

Exceptional resistance to rot or mildew

Not normally affected by grease or oil


Sizes/Capacities:

Webbing widths from 1 to 12 inches

Capacities from 950 to 214,900 lbs

Most web sling types are available in thicknesses from 1 to 4 plys.

Enquire

product enquiry

call us:
Submit
  • Description
  • Specifications
  • Downloads

Webbing sling is the most popular sling, its stretchy characteristic helps minimize shock loading problems. With the advantages of flexible, lightweight and wide bearing surface, it helps protect the lifting load.

They are strong enough to support heavy loads and are versatile enough to be used in different applications and industries.

Single layer

Safety factor:7:1

Item NumberS.W.L(T)Width
(mm)
                                                 Working Load Limits
Vertical
Hitch
Chocker
Hitch
              Basket Hitch       Two Leg Sling

      Three and Four

           Leg Sling

Parallelβ=0°-45°β=45°-60°β=0°-45°β=45°-60°β=0°-45°β=45°-60°
   50_0008_图标_0008_矢量智能对象.png    50_0000_图标_0007_矢量智能对象.png  50_0001_图标_0006_矢量智能对象.png  50_0002_图标_0005_矢量智能对象.png   50_0003_图标_0004_矢量智能对象.png    50_0004_图标_0003_矢量智能对象.png     50_0005_图标_0002_矢量智能对象.png   50_0007_图标_0000_矢量智能对象.png   50_0007_图标_0000_矢量智能对象.png
M=1.0M=0.8M=2.0M=1.4M=1.0M=1.4M=1.0M=2.1M=1.5
52210111381.0 0.8 2.0 1.4 1.0 1.4 1.0 2.1 1.5
52210212762.0 1.6 4.0 2.8 2.0 2.8 2.0 4.2 3.0
522103131103.0 2.4 6.0 4.2 3.0 4.2 3.0 6.3 4.5
522104141504.0 3.2 8.0 5.6 4.0 5.6 4.0 8.4 6.0
522105152005.0 4.0 10.0 7.0 5.0 7.0 5.0 10.5 7.5
522106162406.0 4.8 12.0 8.4 6.0 8.4 6.0 12.6 9.0
522107183058.0 6.4 16.0 11.2 8.0 11.2 8.0 16.8 12.0

Double layers

Safety factor:7:1

Item NumberS.W.L(T)Width
(mm)
                                                  Working Load Limits
Vertical
Hitch
Chocker
Hitch
               Basket Hitch      Two Leg Sling

      Three and Four

          Leg Sling

Parallelβ=0°-45°
β=45°-60°
β=0°-45°β=45°-60°β=0°-45°β=45°-60°
   50_0008_图标_0008_矢量智能对象.png    50_0000_图标_0007_矢量智能对象.png  50_0001_图标_0006_矢量智能对象.png  50_0002_图标_0005_矢量智能对象.png   50_0003_图标_0004_矢量智能对象.png    50_0004_图标_0003_矢量智能对象.png     50_0005_图标_0002_矢量智能对象.png   50_0007_图标_0000_矢量智能对象.png   50_0007_图标_0000_矢量智能对象.png
M=1.0M=0.8M=2.0M=1.4M=1.0M=1.4M=1.0M=2.1M=1.5
52210121301.0 0.8 2.0 1.4 1.0 1.4 1.0 2.1 1.5
52210222602.0 1.6 4.0 2.8 2.0 2.8 2.0 4.2 3.0
52210323903.0 2.4 6.0 4.2 3.0 4.2 3.0 6.3 4.5
522104241204.0 3.2 8.0 5.6 4.0 5.6 4.0 8.4 6.0
522105251505.0 4.0 10.0 7.0 5.0 7.0 5.0 10.5 7.5
522106261806.0 4.8 12.0 8.4 6.0 8.4 6.0 12.6 9.0
522107282408.0 6.4 16.0 11.2 8.0 11.2 8.0 16.8 12.0
52210821030010.0 8.0 20.0 14.0 10.0 14.0 9.0 18.9 13.5


4 layers

Safety factor:7:1

Item NumberS.W.L(T)Width
(mm)

                                                   Working Load Limits

Vertical
Hitch
Chocker
Hitch
               Basket Hitch       Two Leg Sling

     Three and Four

          Leg Sling

Parallelβ=0°-45°β=45°-60°β=0°-45°β=45°-60°β=0°-45°β=45°-60°
   50_0008_图标_0008_矢量智能对象.png    50_0000_图标_0007_矢量智能对象.png  50_0001_图标_0006_矢量智能对象.png  50_0002_图标_0005_矢量智能对象.png   50_0003_图标_0004_矢量智能对象.png    50_0004_图标_0003_矢量智能对象.png     50_0005_图标_0002_矢量智能对象.png   50_0007_图标_0000_矢量智能对象.png   50_0007_图标_0000_矢量智能对象.png
M=1.0M=0.8M=2.0M=1.4M=1.0M=1.4M=1.0M=2.1M=1.5
52210131301.0 0.8 2.0 1.4 1.0 1.4 1.0 2.1 1.5
52210232602.0 1.6 4.0 2.8 2.0 2.8 2.0 4.2 3.0
52210333903.0 2.4 6.0 4.2 3.0 4.2 3.0 6.3 4.5
522104341204.0 3.2 8.0 5.6 4.0 5.6 4.0 8.4 6.0
522105351505.0 4.0 10.0 7.0 5.0 7.0 5.0 10.5 7.5
522106361806.0 4.8 12.0 8.4 6.0 8.4 6.0 12.6 9.0
522107382408.0 6.4 16.0 11.2 8.0 11.2 8.0 16.8 12.0
52210831030010.0 8.0 20.0 14.0 10.0 14.0 9.0 18.9 13.5
