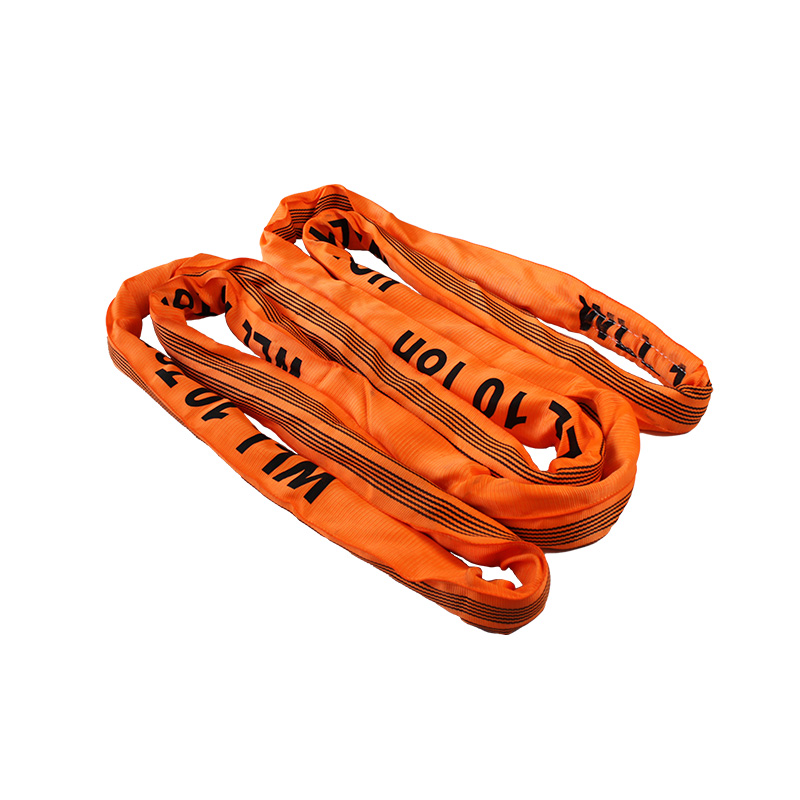

Construction:
Made from a continuous loop of polyester yarn covered by a double wall tubular polyester jacket
Safety Factor:
5:1, 7:1, 8:1
Features/Benefits:
Color coded for easy identification
Lightweight and flexible for easy rigging and storage
Design allows legs to be spread, increasing load stability
Low stretch - good for low headroom lifts
Resists moisture absorption, rot and mildew
Soft seamless cover protects and securely grips load
Resists most industrial acids and hot bleaching solutions
Red striped core yarns visually warn of sling damage
Load bearing yarns protected from UV degradation
Sizes/Capacities:
Length range from 1.5 to 50 feet
Capacities from 2,600 to 180,000 lbs
Round sling offer an enhanced combination of strength abrasion resistant outer jacket. Better breaking strength than web sling with less weight Flexibility handling and stocking, Protect the lifted body well.High resistance to chemical and oil contamination.

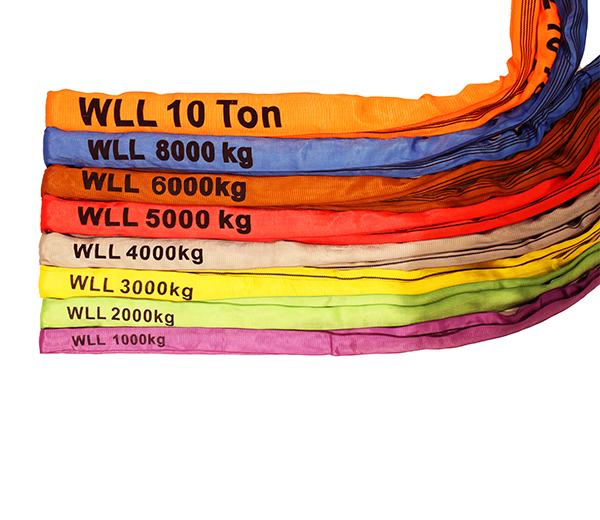

| Item Number | Color Code | S.W.L(T) | Working Load Limits | ||||||||
| Vertical Hitch | Chocker Hitch | Basket Hitch | Two Leg Sling | Three and Four Leg Sling | |||||||
| Parallel | β=0°-45° | β=45°-60° | β=0°-45° | β=45°-60° | β=0°-45° | β=45°-60° | |||||
 |  |  |  |  |  |  |  |  | |||
| M=1.0 | M=0.8 | M=2 | M=1.4 | M=1 | M=1.4 | M=1 | M=2.1 | M=1.5 | |||

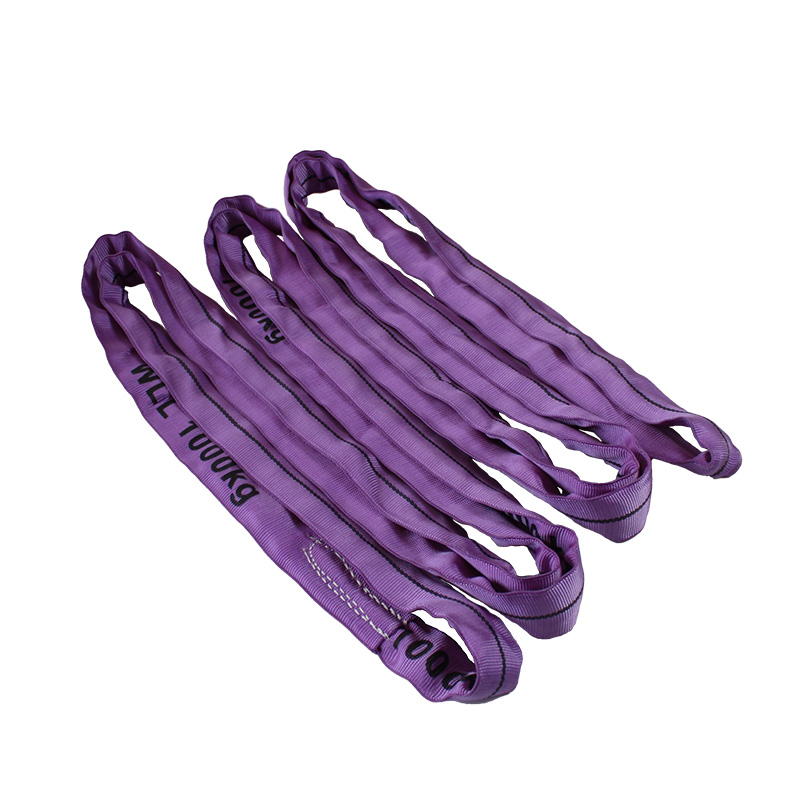

| 5232012 | VIOLET | 1 | 1 | 0.8 | 2 | 1.4 | 1 | 1.4 | 1 | 2.1 | 1.5 |

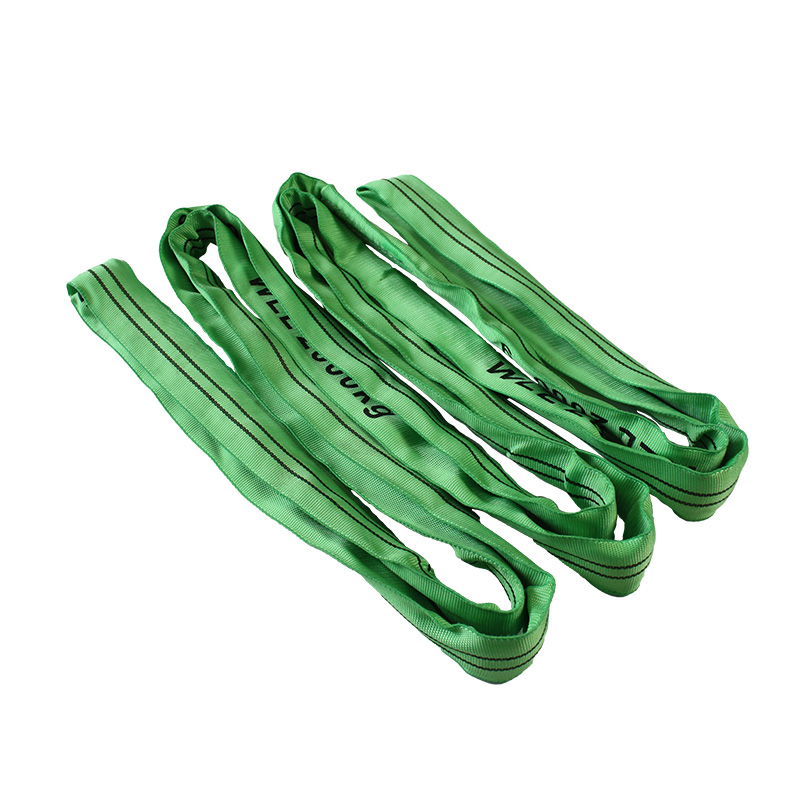

| 5232022 | GREEN | 2 | 2 | 1.6 | 4 | 2.8 | 2 | 2.8 | 2 | 4.2 | 3.0 |

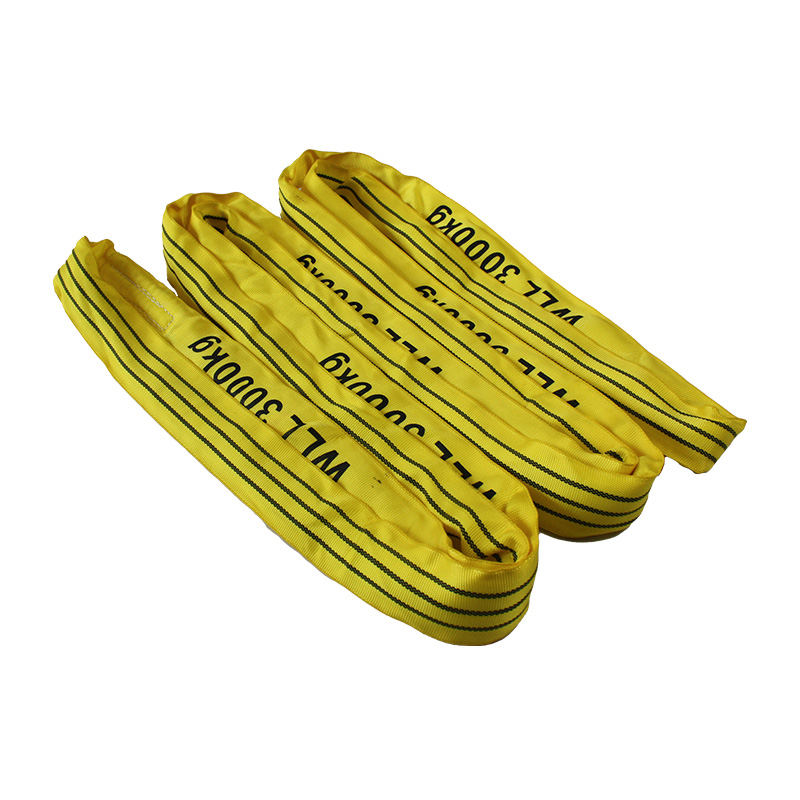

| 5232032 | YELLOW | 3 | 3 | 2.4 | 6 | 4.2 | 3 | 4.2 | 3 | 6.3 | 4.5 |

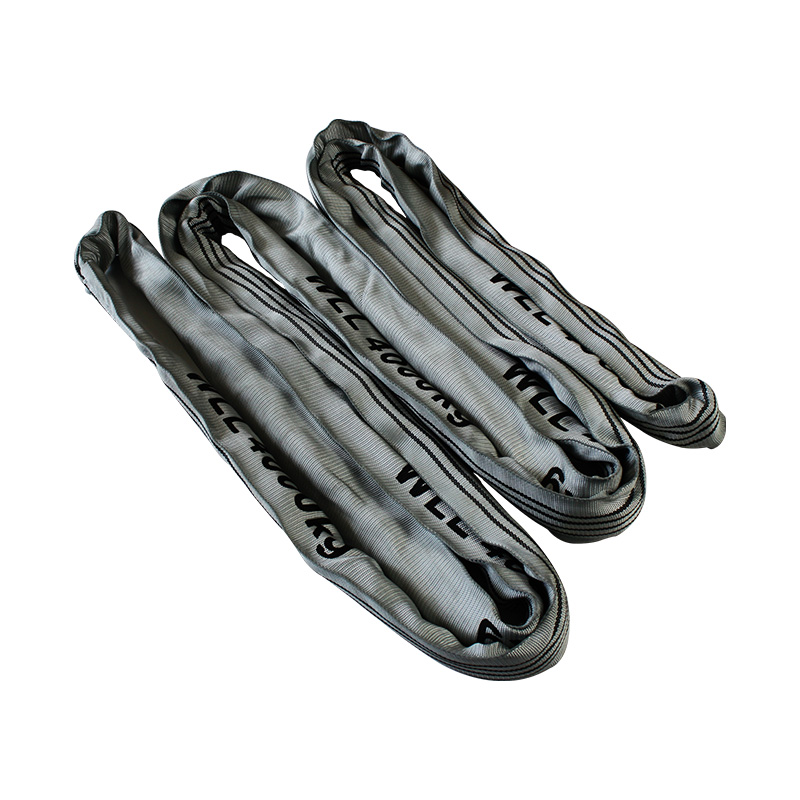

| 5232042 | GREY | 4 | 4 | 3.2 | 8 | 5.6 | 4 | 5.6 | 4 | 8.4 | 6.0 |

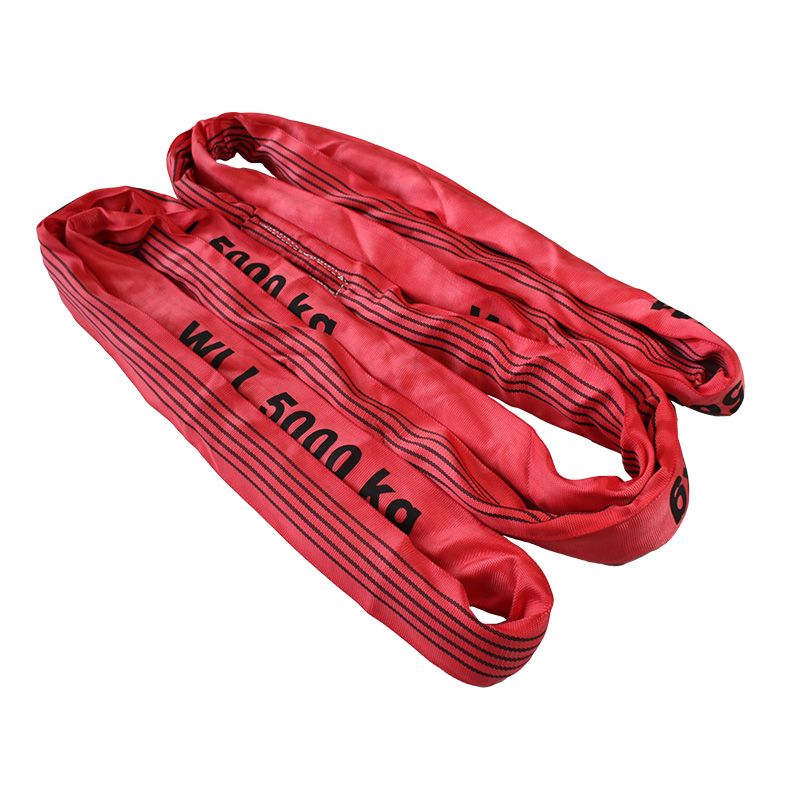

| 5232052 | RED | 5 | 5 | 4.0 | 10 | 7.0 | 5 | 7.0 | 5 | 10.5 | 7.5 |

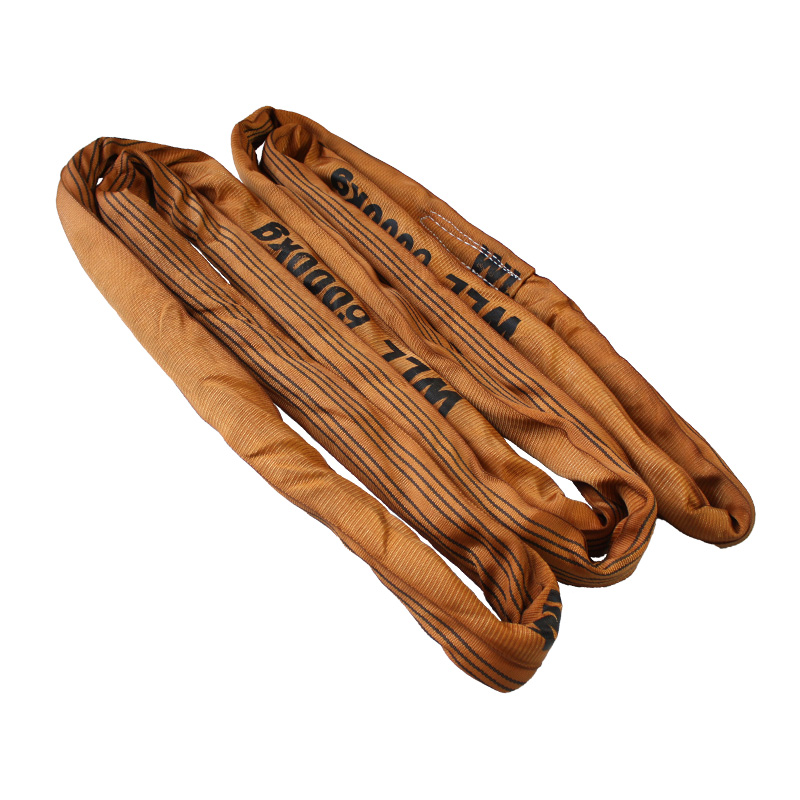

| 5232062 | BROWN | 6 | 6 | 4.8 | 12 | 8.4 | 6 | 8.4 | 6 | 12.6 | 9.0 |

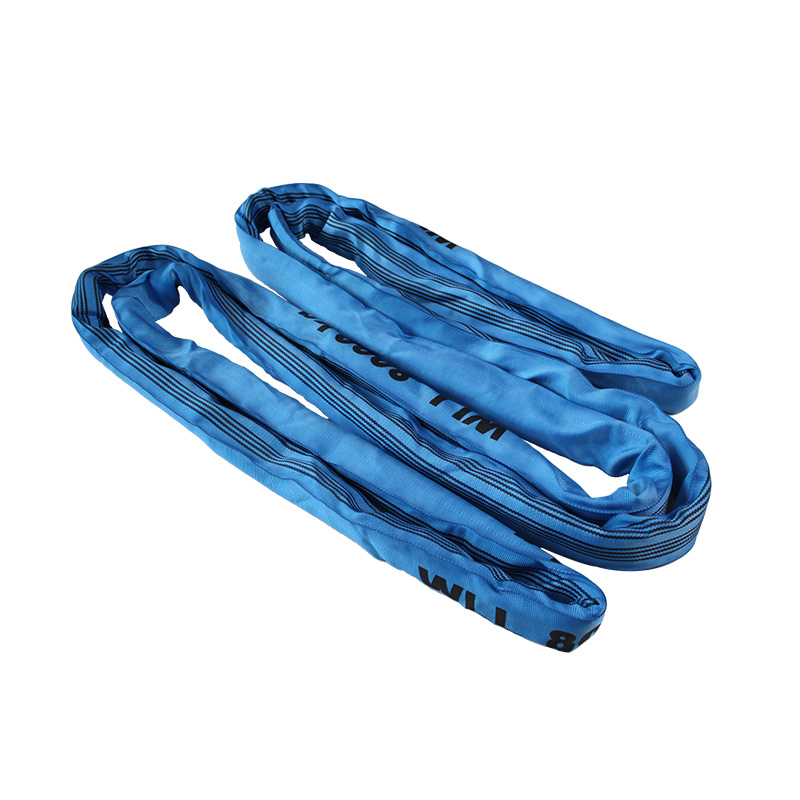

| 5232072 | BLUE | 8 | 8 | 6.4 | 16 | 11.2 | 8 | 11.2 | 8 | 16.8 | 12.0 |
| 5232082 | ORANGE | 10 | 10 | 8.0 | 20 | 14.0 | 10 | 14.0 | 10 | 21.0 | 15.0 |
| 5232092 | 12 | 12 | 9.6 | 24 | 16.8 | 12 | 16.8 | 12 | 25.2 | 18 | |
Round sling offer an enhanced combination of strength abrasion resistant outer jacket. Better breaking strength than web sling with less weight Flexibility handling and stocking, Protect the lifted body well. High resistance to chemical and oil contamination.
